Edge 50

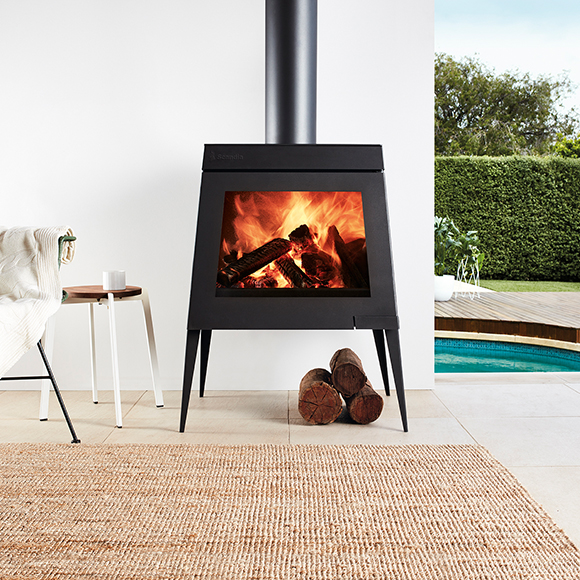

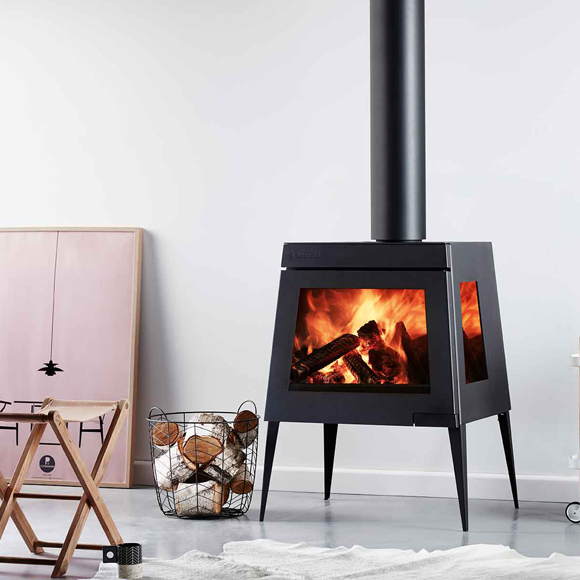

With a nod to French provincial designs and inspired by the idea of bringing your indoor and outdoor living areas together, the Scandia Edge 50’s clean lines, elegant legs and three-sided viewing glass are a welcome addition to any living space.
Sophisticated and sleek, the Edge 50 will suit any modern look you’re going for while emitting a powerful amount of heat for its size.
KEY BENEFITS
- Stunning from any angle with its 3 sided viewing glass.

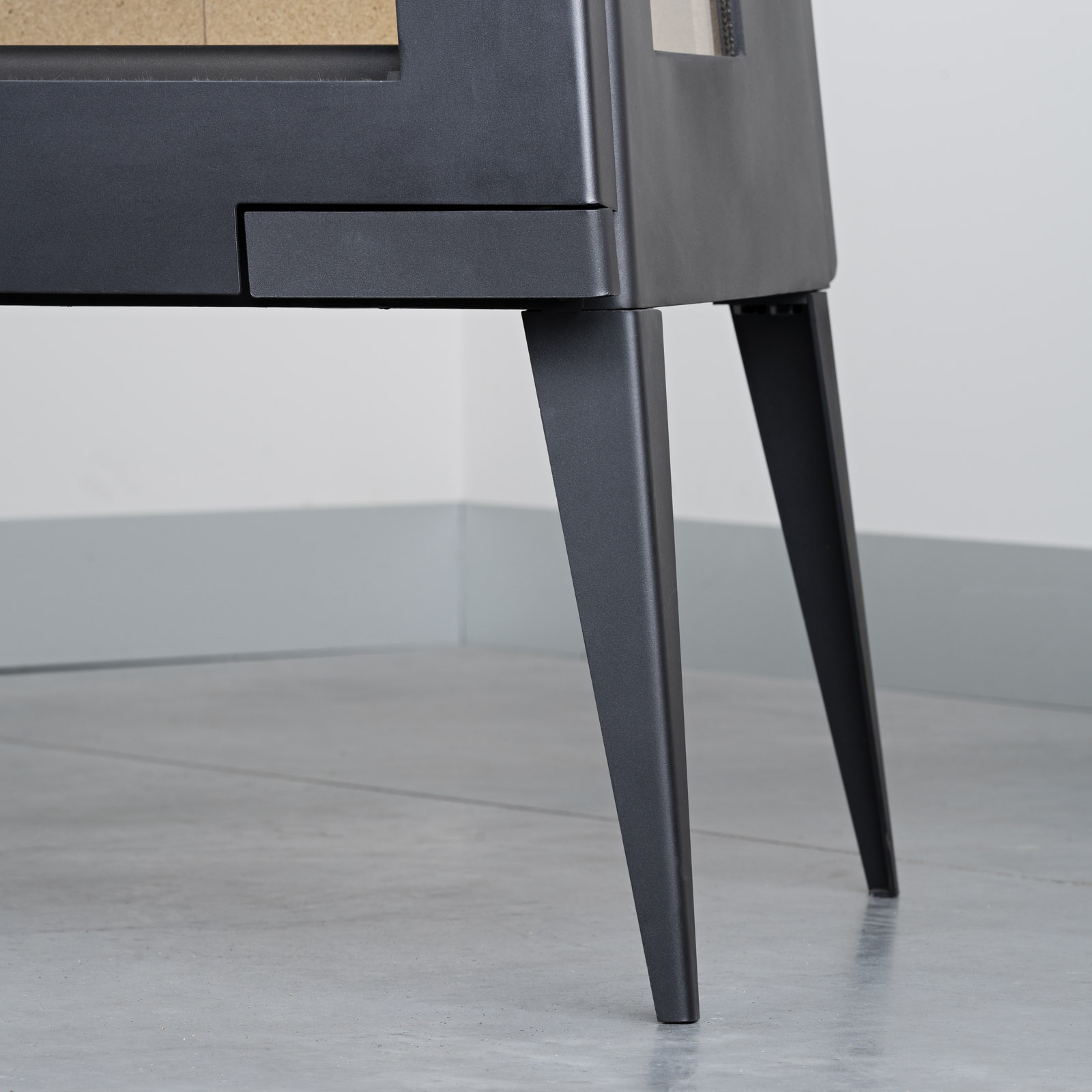

- Go from French provincial legs to Modern wood stacker base.
- Great space saver that packs a mighty punch radiantly heating up to 200m2
Reviews (0)
TECHNICAL DETAILS
- Radiant heating – no fan

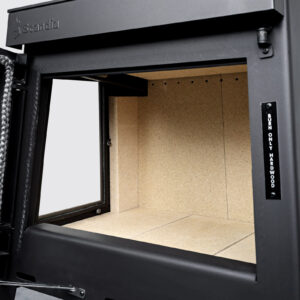

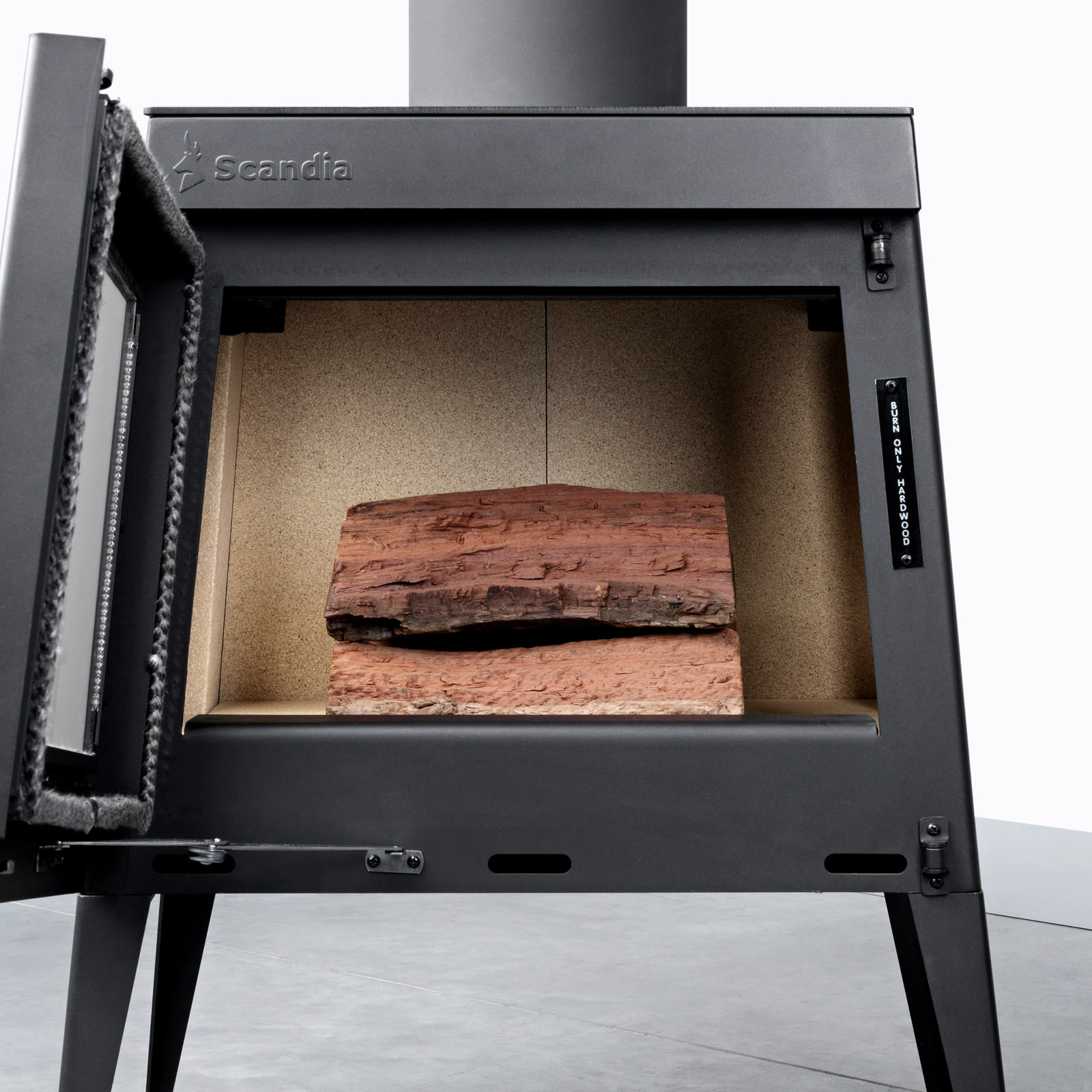

- 5mm heavy duty firebox

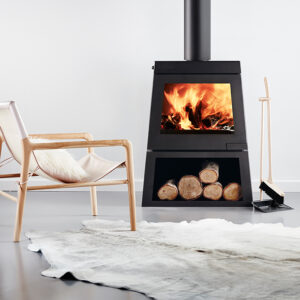

- Optional wood stacker pedestal
- 10 year firebox warranty
- Outperforms Australian Standards

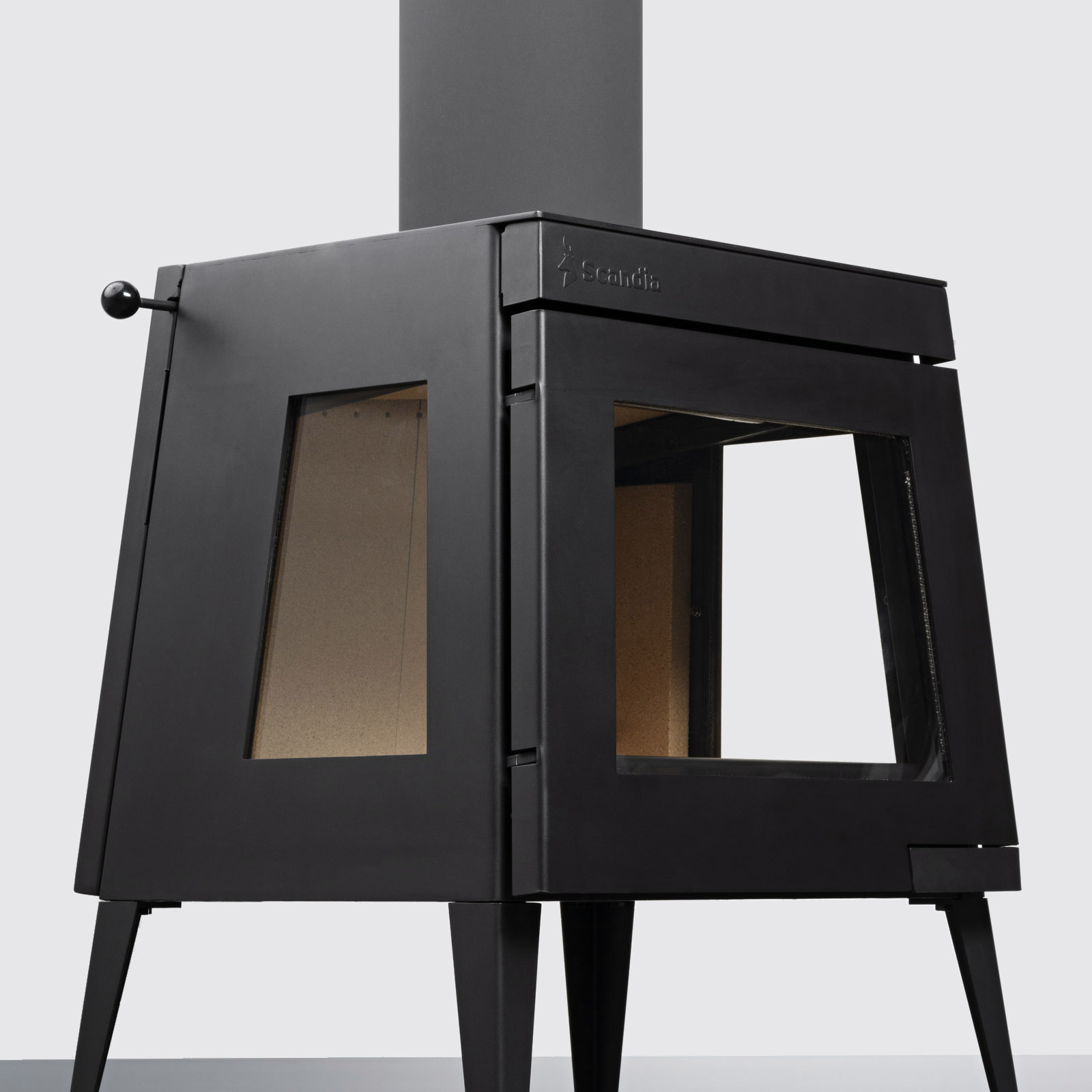

- Panoramic fire views with glass on three sides

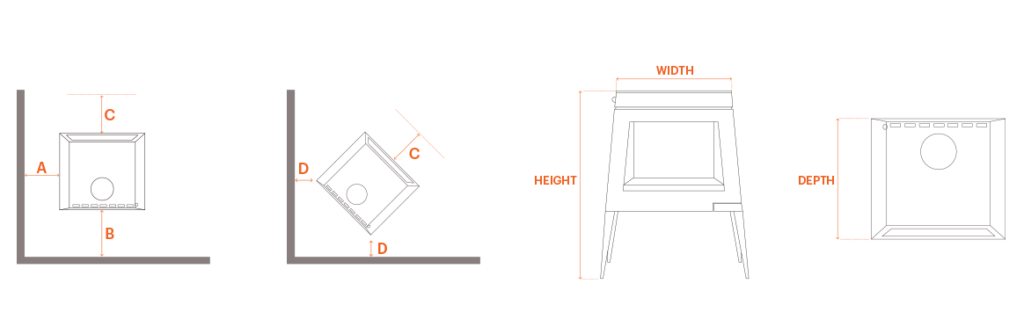

CLEARANCES
| Clearance to Combustible Surfaces (mm) | |||||
|---|---|---|---|---|---|
| A | B | C | D | ||
| 650 | 125 | 300 | 350 | ||
| Unit Dimensions (mm) | |||||
|---|---|---|---|---|---|
| WIDTH | HEIGHT | DEPTH | WEIGHT | ||
| 625 | 824 | 494 | 98 kg | ||
| Firebox Dimensions (mm) | |||||||
|---|---|---|---|---|---|---|---|
| WIDTH | HEIGHT | DEPTH | |||||
| 482 | 312 | 334 | |||||
The above clearances are applicable when using the Scandia Decorative mesh flue kit (decorative flue is fitted with an additional heat shield)
Above clearances are a guide only. Diagrams are not drawn to scale and are for illustrative purposes. Please refer to user manual for further information.
EDGE 50 VIDEO
WHAT YOU WILL NEED
FLUE KIT OPTIONS
Sleek Black Flue Kit 3171234
Black Mesh Flue Kit 3180672
ROOF FLASHING OPTIONS
Metal Roof Flashing 3171673
Tile Roof Flashing 3171672
HEARTH OPTIONS
Straight 1050mm x 1050mm
or Corner 1425mm x 1425mm
Please note: All wood fires must be installed by a qualified person whose work conforms with local council regulations, Australian/New Zealand standards (AS/NZS 2918:2018) & manufacturers recommendations.
