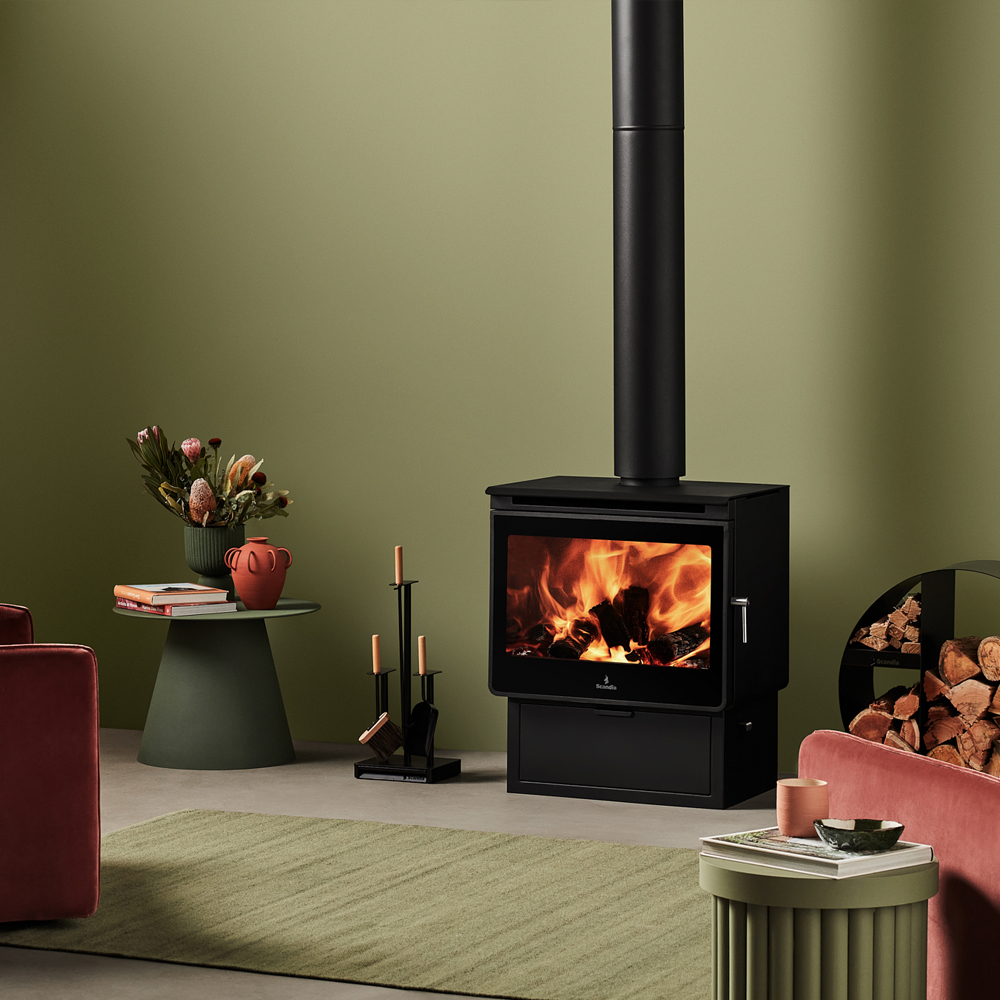

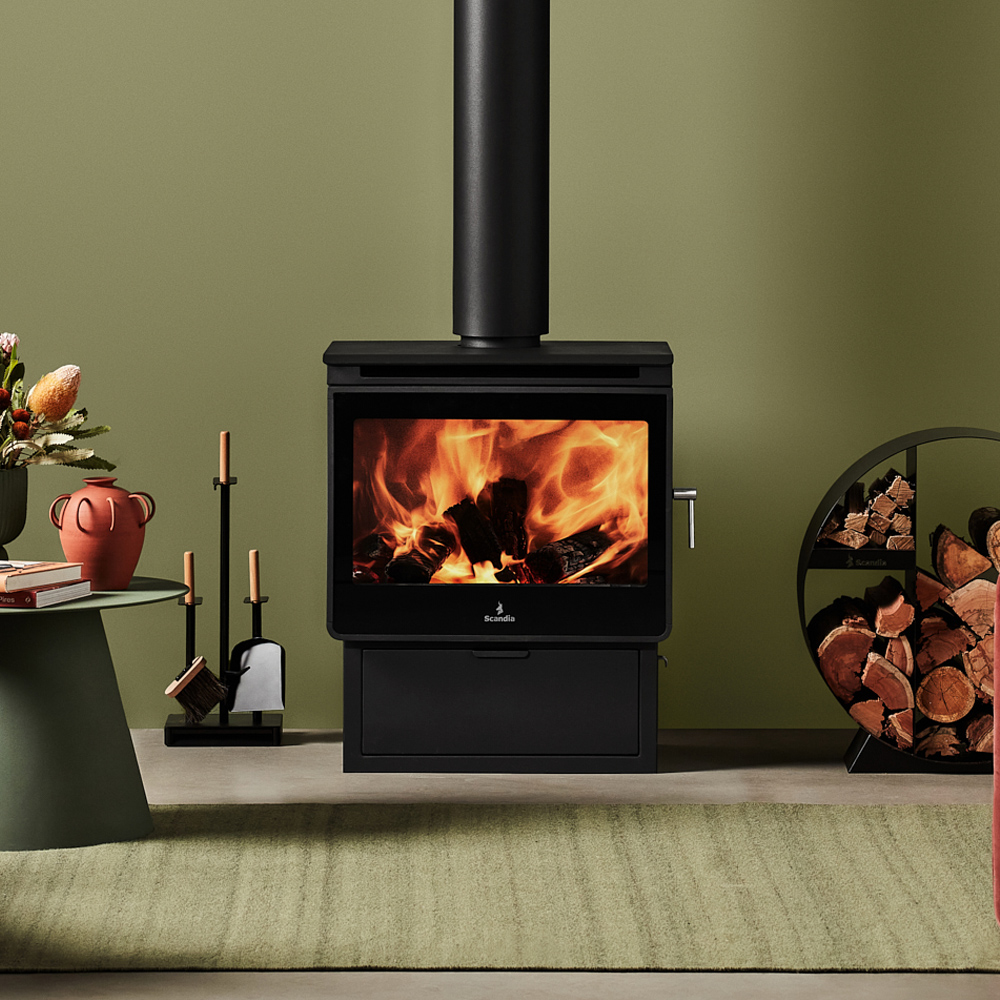

Australis L
The new Australis L from the Scandia Range combines sleek design with innovative features like a pull-out ash drawer and superior thermal efficiency. Crafted with a commitment to the environment, Australis represents a new era in wood fire heating.
KEY BENEFITS
- External air intake resulting in improved efficiency and reduced emissions.
- Easy cleaning with convenient features like the dual ash ports and pull-out ash removal draw.
- 3 speed fan with RF remote to control your fan speed anywhere in the room
Reviews (0)
TECHNICAL DETAILS
- Heat up to 350m2
- Very low emissions 0.7g/kg
- 3 speed fan with RF remote
- Vermiculite liners
- Dual access dust chutes
- Pull-out ash draw with closable lid
- 6mm heavy duty firebox
- 15 year firebox warranty
- Large Glass Door: 684w x 503h
- Outperforms Australian Standards
CLEARANCES
| Clearance to Combustible Surfaces (mm) | |||||
|---|---|---|---|---|---|
| A | B | C | D | ||
| 475 | 125 | 550 | 200 | ||
| Unit Dimensions (mm) | |||||
|---|---|---|---|---|---|
| WIDTH | HEIGHT | DEPTH | WEIGHT | ||
| 694 | 856 | 546 | 156 kg | ||
| Firebox Dimensions (mm) | |||||||
|---|---|---|---|---|---|---|---|
| WIDTH | HEIGHT | DEPTH | |||||
| 540 | 352 | 325 | |||||
The above clearances are applicable when using the Scandia Decorative mesh flue kit (decorative flue is fitted with an additional heat shield)
Above clearances are a guide only. Diagrams are not drawn to scale and are for illustrative purposes. Please refer to user manual for further information.
WHAT YOU WILL NEED
FLUE KIT OPTIONS
Sleek Black Flue Kit 3171234
Black Mesh Flue Kit 3180672
ROOF FLASHING OPTIONS
Metal Roof Flashing 3171673
Tile Roof Flashing 3171672
HEARTH OPTIONS
Straight 1050mm x 1200mm
or Corner 1425mm x 1425mm
Please note: All wood fires must be installed by a qualified person whose work conforms with local council regulations, Australian/New Zealand standards (AS/NZS 2918:2018) & manufacturers recommendations.
